PST presents the Durable Stainless Steel Compression Mini Micro Button Load Cell 10kg for Industrial Robotic applications. This compact and robust sensor is engineered to deliver precise robotic force measurement in tight spaces, combining corrosion-resistant construction with high-fidelity output for demanding automation, testing, and process-control environments. The PST mini load cell 10kg is an ideal solution where small form factor, stainless steel durability, and reliable compression sensing are required.

Design and Construction

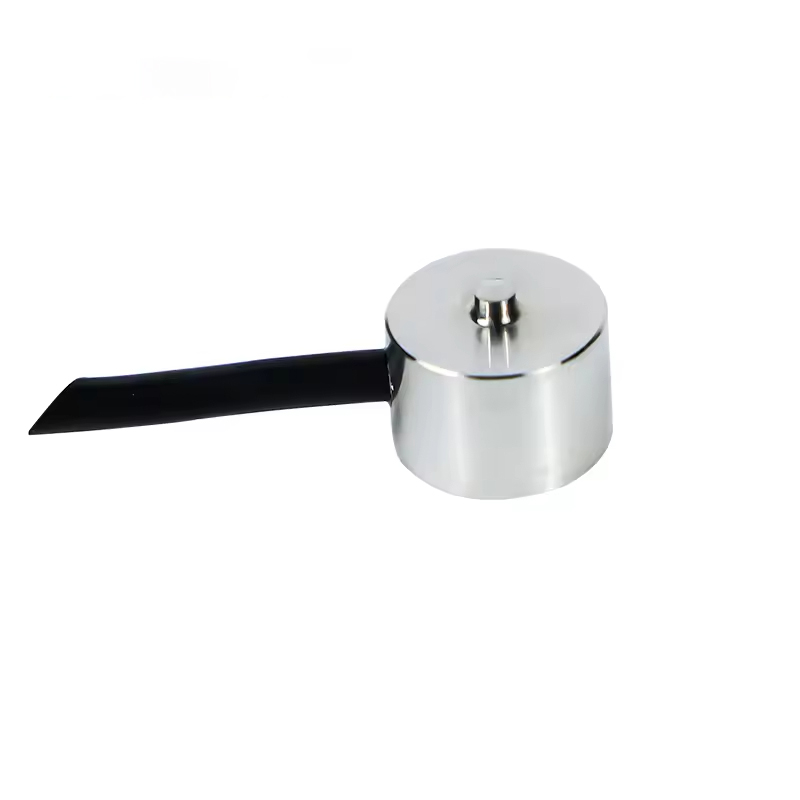

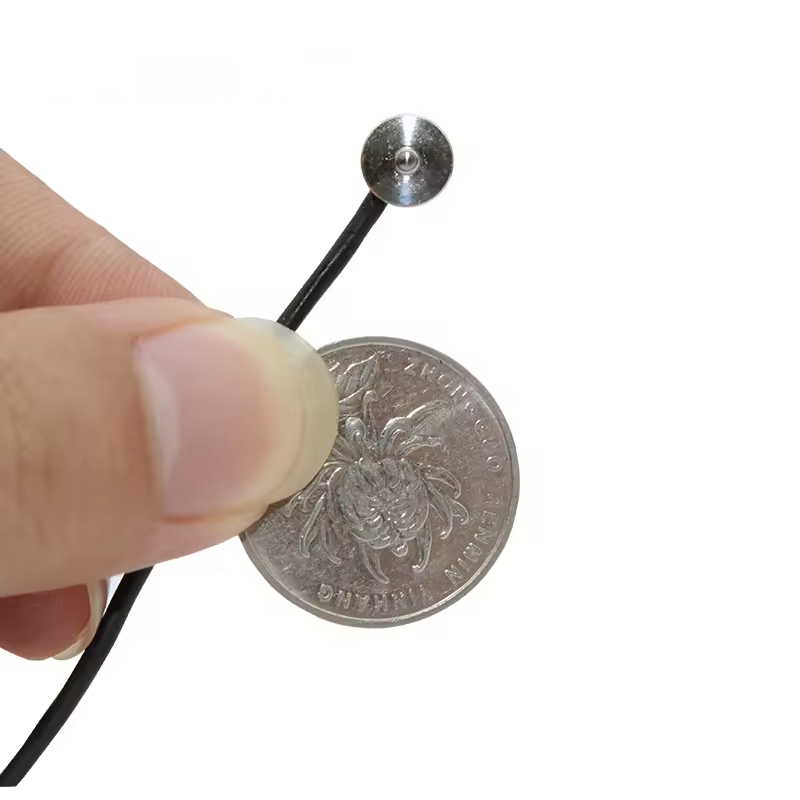

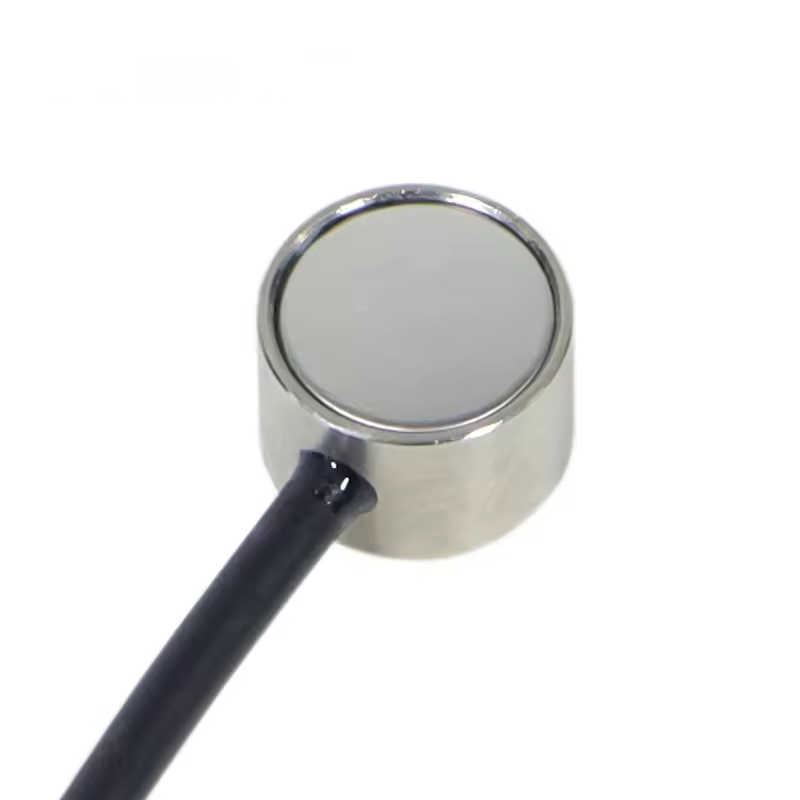

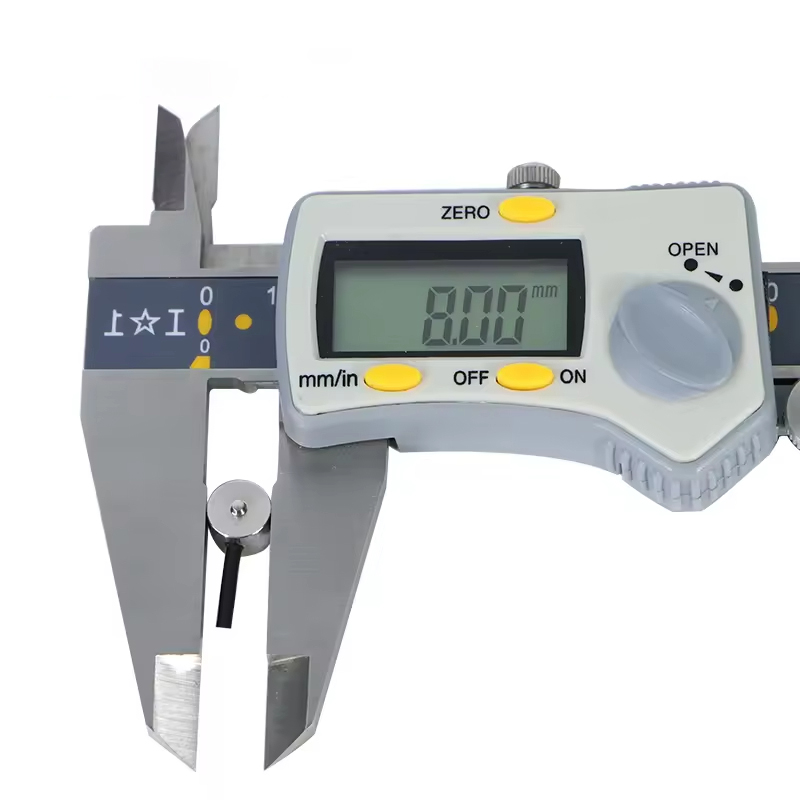

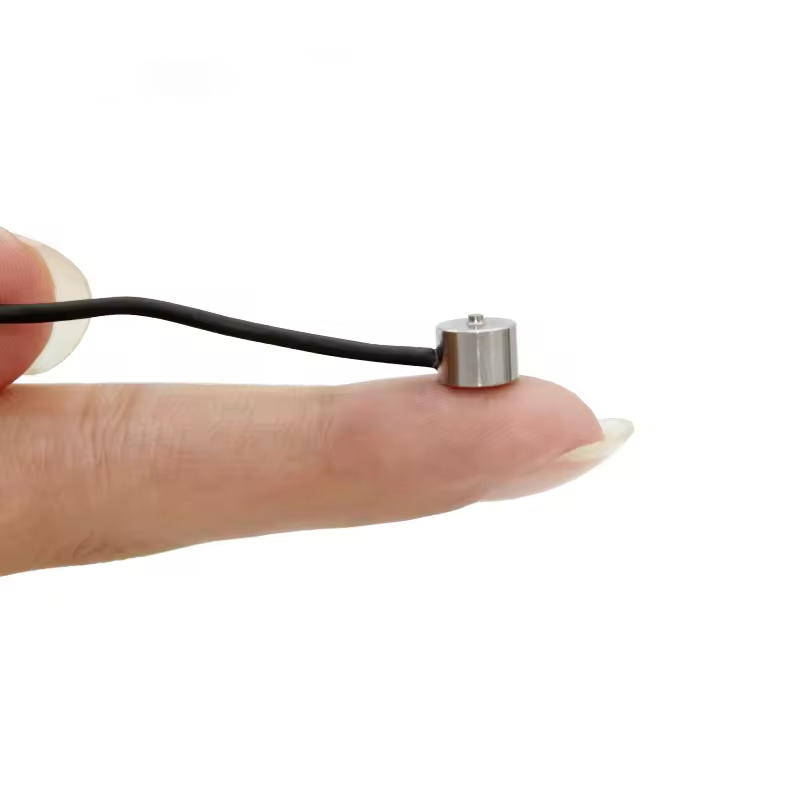

The PST mini load cell 10kg features a hardened stainless steel body that resists wear, corrosion, and mechanical fatigue. The stainless steel compression sensor geometry yields a low-profile button footprint that can be integrated directly into end-effectors, fixtures, or mounting plates. The compact dimensions of the mini load cell 10kg permit placement in confined assemblies where conventional sensors are impractical. As a button load cell sensor, its flat upper surface accepts direct compressive loads while maintaining stable zero and repeatability characteristics.

Performance and Accuracy

PST’s button load cell sensor is optimized for repeatable, linear response across the full 10kg range. The mini load cell 10kg uses high-grade foil strain gauges arranged in a Wheatstone bridge configuration to maximize sensitivity and minimize temperature-induced drift. The stainless steel compression sensor demonstrates excellent creep resistance and minimal hysteresis, assuring consistent force readings over extended duty cycles. When deployed for robotic force measurement tasks, the mini load cell 10kg delivers fine resolution at low forces while maintaining stability at the 10kg full-scale capacity.

Applications in Industrial Robotics

The compact PST stainless steel compression sensor fits seamlessly into modern robotic systems that require precise force feedback. Use cases include robotic grippers that need tactile sensing to prevent damage to delicate parts, automated assembly lines where controlled pressing or insertion forces are critical, and collaborative robots that must measure contact force for safe human-robot interaction. The mini load cell 10kg also serves force measurement duties in end-of-arm tooling, test rigs, and conveyor-mounted inspection stations. As a button load cell sensor, it can be mounted on fixture plates or integrated into probe tips to provide accurate robotic force measurement in production and laboratory environments.

Innovation and Technical Advantages

PST’s mini load cell 10kg incorporates innovations that enhance performance for robotic applications. The sensor employs precision-machined stainless steel load paths to ensure consistent force transfer to the strain gauge element. This design minimizes off-axis sensitivity and reduces error induced by slight misalignment—an important consideration for the dynamic motions inherent in robotic systems. The button load cell sensor benefits from an optimized strain gauge layout and temperature compensation technique, delivering improved linearity and thermal stability over a wide operating range.

Integration and Signal Conditioning

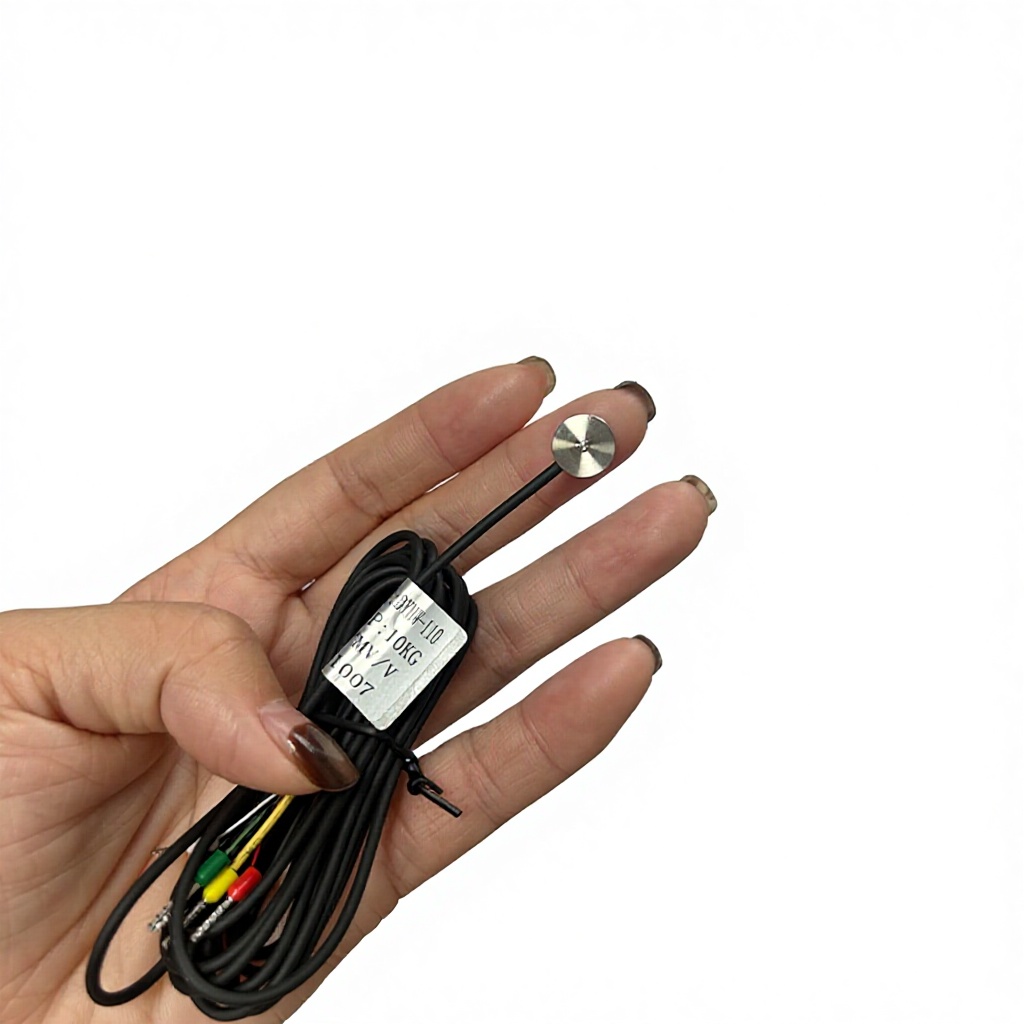

Integrating the PST button load cell sensor into robotic control systems is straightforward. The mini load cell 10kg is available with standardized wiring options for compatibility with common instrumentation amplifiers and digital converters. Signal conditioning modules can be paired with the stainless steel compression sensor to provide amplified, filtered, and temperature-compensated outputs suitable for real-time robotic force measurement. For applications requiring high-speed feedback, the PST mini load cell 10kg supports rapid sampling and low-noise amplification to maintain signal fidelity during dynamic robot motions.

Durability and Maintenance

PST engineered the button load cell sensor with low maintenance in mind. The stainless steel compression sensor’s sealed design prevents ingress of contaminants and moisture, reducing the need for frequent servicing. Its corrosion-resistant materials and wear-tolerant surfaces make the mini load cell 10kg suitable for prolonged use in industrial environments. Routine inspection is minimal, and the sensor’s stable zero and repeatability characteristics contribute to reduced recalibration frequency.

The PST Durable Stainless Steel Compression Mini Micro Button Load Cell 10kg combines a compact footprint, stainless steel resilience, and precision sensing to deliver dependable robotic force measurement. As a mini load cell 10kg, this button load cell sensor excels in space-constrained installations, offering high accuracy, low drift, and robust protection against industrial contaminants. Its advanced design and integration flexibility make the stainless steel compression sensor an excellent choice for robotic grippers, end-of-arm tooling, automated assembly, and testing systems that demand reliable force feedback. Choose the PST mini load cell 10kg for a proven button load cell sensor that meets the rigorous needs of modern industrial robotic force measurement.
