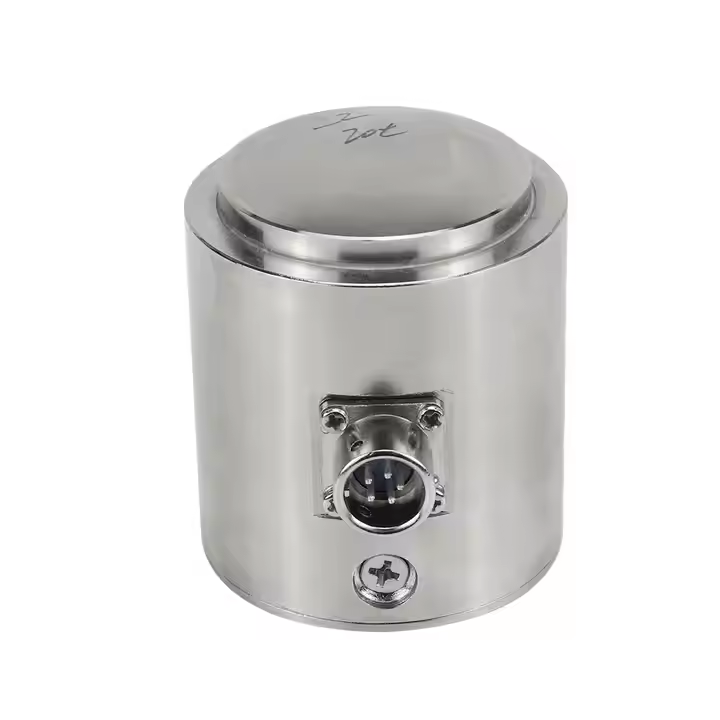

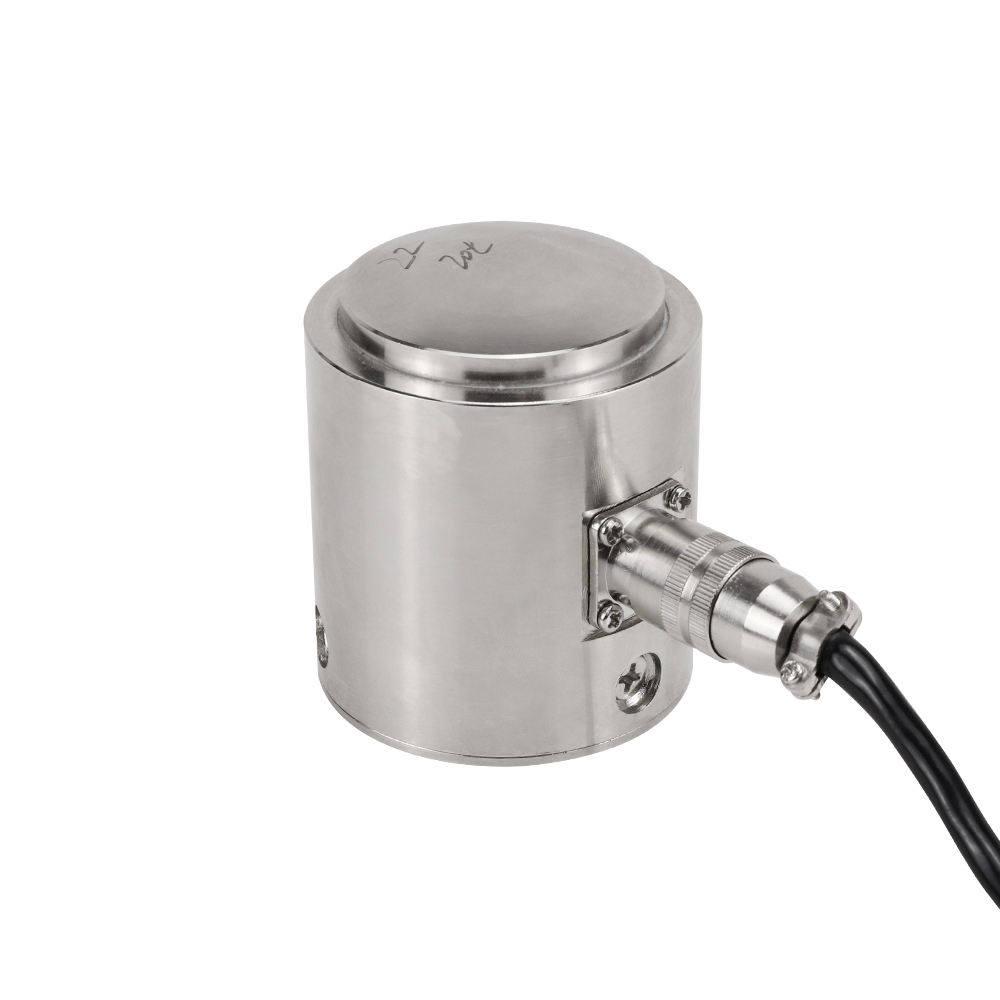

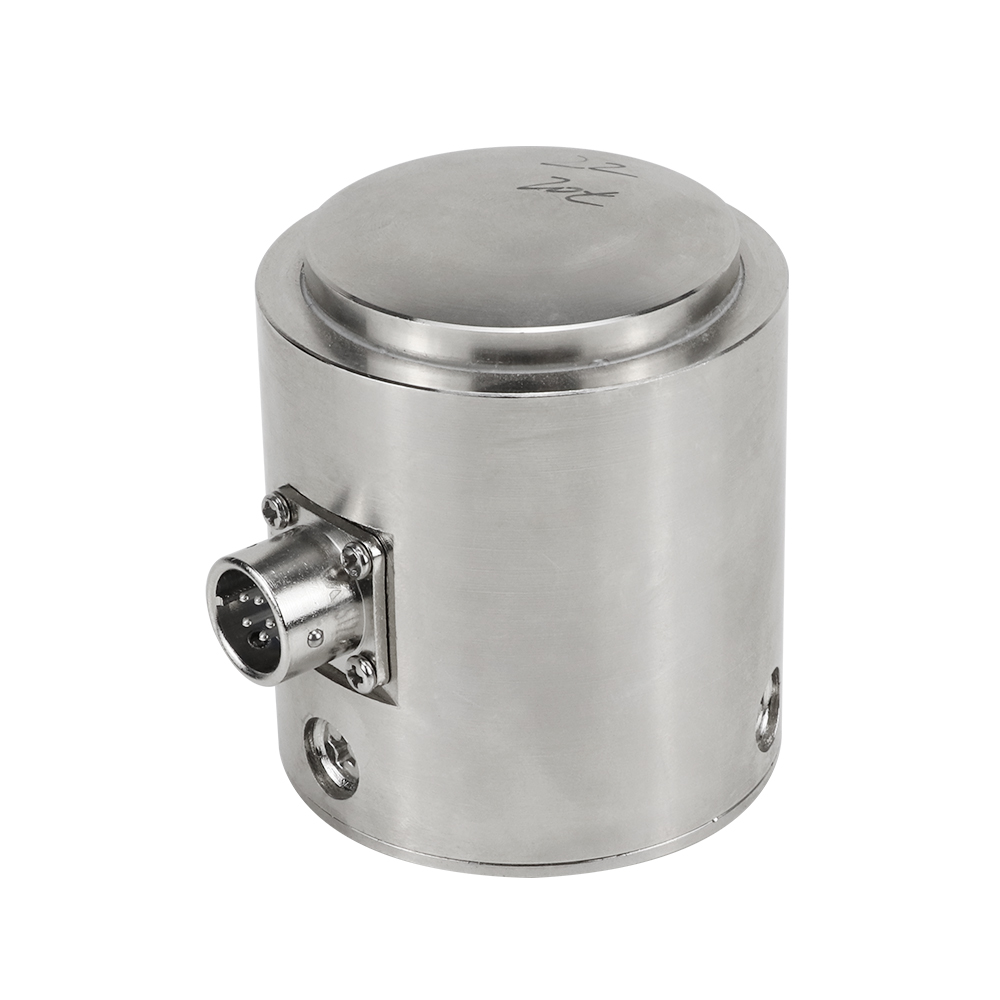

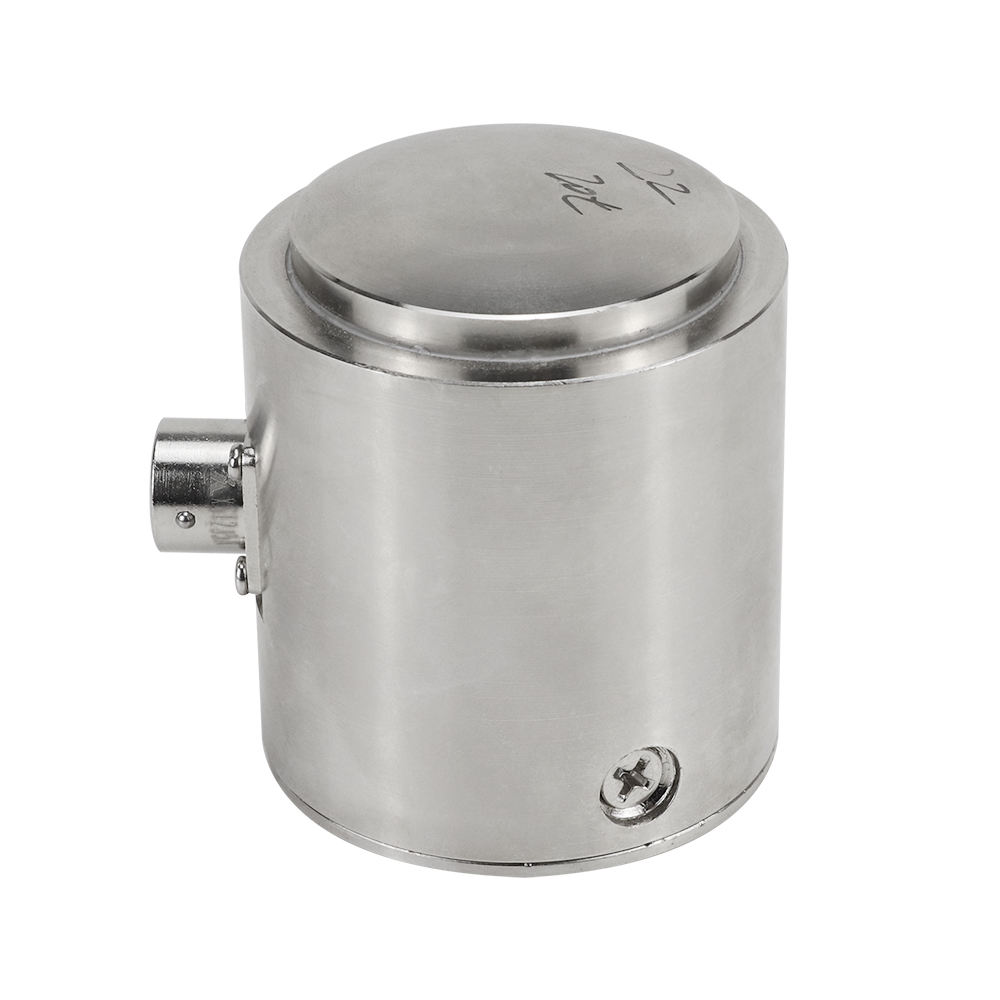

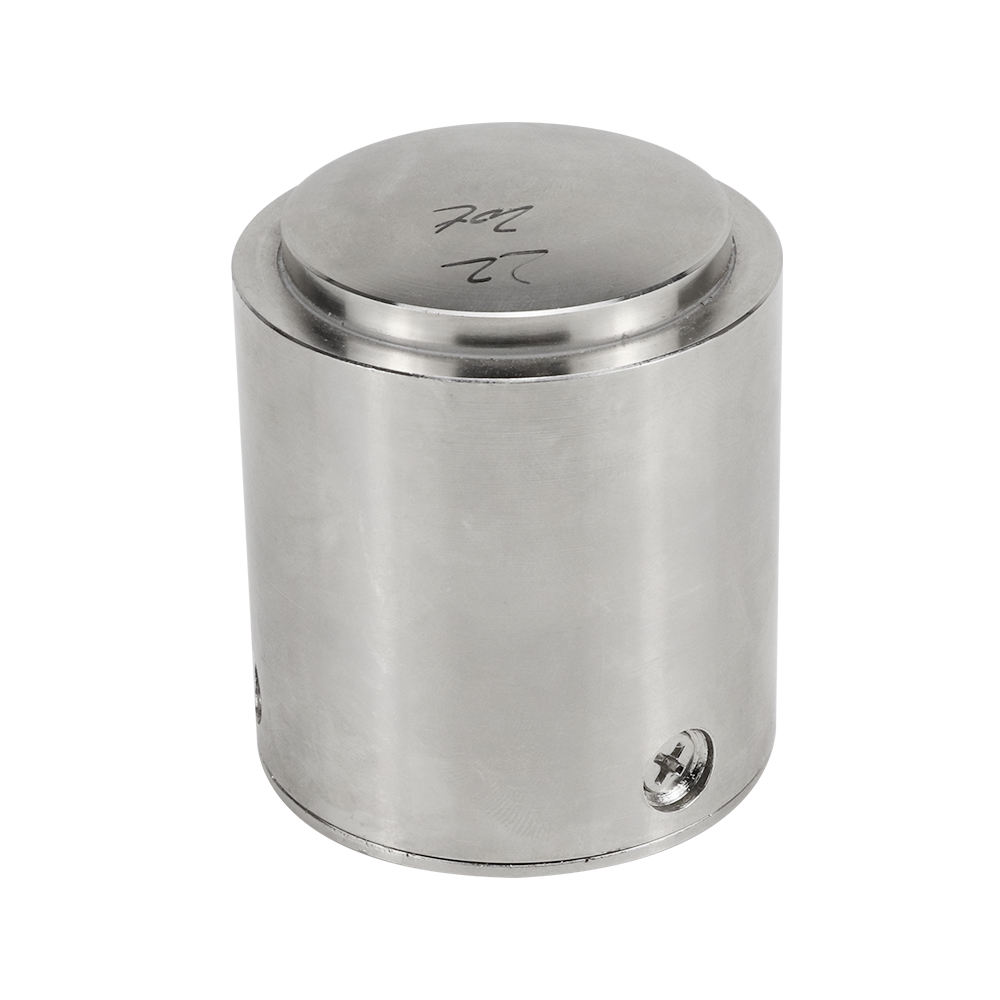

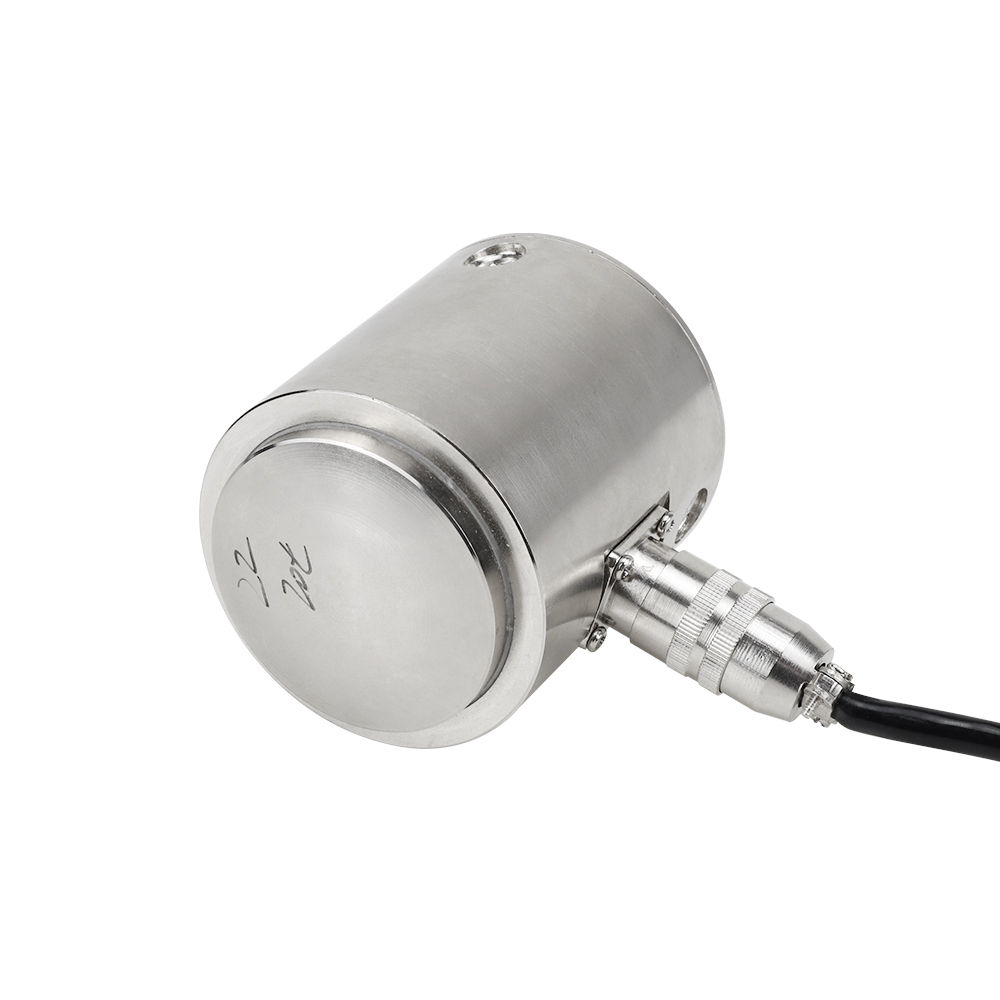

PST presents the 0–1000T Optional Compression Load Cell — a high-precision digital load cell designed for critical medical testing, laboratory calibration, and industrial force measurement applications. This advanced compression load cell serves as a reliable weight sensor and force sensor, delivering repeatable performance across a wide load range while integrating seamlessly into digital measurement systems. Engineered to meet stringent accuracy and durability requirements, the PST compression load cell combines robust mechanical design with refined electronics to offer a complete digital load cell solution for demanding testing environments.

Product overview

The PST 0–1000T compression load cell is a heavy-duty digital load cell designed to measure compressive forces from small loads up to 1000 metric tons. As a precision weight sensor and force sensor, it converts compressive force into a high-resolution digital signal through integrated electronics, minimizing noise and compensating for environmental influences. The digital load cell format simplifies system integration by providing ready-to-use output formats, allowing direct connection to data acquisition systems, controllers, or test frames used in medical testing and calibration laboratories. This compression load cell is optimized for static and quasi-static measurements common in medical device testing, material compression testing, and calibration of force application equipment.

Key features and technical advantages

- Wide capacity range: The PST compression load cell covers a broad capacity span up to 1000T, providing a single model family for diverse test requirements. As a weight sensor and force sensor, it enables consistent measuring methodology across capacities, streamlining calibration and data comparability.

- Digital load cell output: The integrated digital conversion in this digital load cell reduces analog signal degradation and ensures stable, accurate readings over long cable runs. Digital output minimizes susceptibility to electromagnetic interference, an important advantage for sensitive medical testing environments.

- High accuracy and repeatability: Designed with precision strain gauge technology and advanced signal processing, the compression load cell offers excellent linearity, hysteresis, and repeatability. This ensures that the PST digital load cell reliably captures subtle variations in applied force and weight, critical for medical component testing and verification.

- Robust mechanical construction: The compression load cell is constructed from high-strength alloy steel or optional stainless steel to withstand heavy compressive loads, shock, and corrosive conditions. Mechanical robustness reduces downtime and maintenance needs in rigorous testing facilities.

- Temperature compensation and environmental protection: The PST digital load cell includes temperature compensation and environmental sealing to maintain measurement integrity across a wide temperature range and humid conditions. These protections make the weight sensor suitable for controlled laboratory settings and harsher industrial environments alike.

Applications in medical testing and beyond

The PST compression load cell provides unparalleled utility across a range of medical testing applications where accurate compression and weight measurement are essential. Typical use cases include:

- Medical device compression testing: Evaluating the mechanical integrity of implants, prosthetic components, syringes, and housings under controlled compressive loads. The digital load cell’s precision and repeatability ensure compliance with regulatory standards and internal quality control protocols.

- Biomechanical testing: Measuring forces in simulated physiological loading scenarios, including prosthesis load evaluation, spinal implant compression tests, and orthotic device validation. The compression load cell supports high-capacity and low-deflection requirements demanded by biomechanical rigs.

- Material compression testing: Determining compressive strength and modulus of biomedical materials, polymers, and composites used in medical devices. The weight sensor and force sensor characteristics provide stable, high-resolution data for material science studies.

- Calibration laboratories: Serving as a reference digital load cell for calibration of lower-capacity weight sensors, testing machines, and force measurement equipment. The PST compression load cell’s traceable calibration and digital outputs make it ideal for lab-grade reference use.

Innovations and design differentiators

PST’s 0–1000T compression load cell embodies several design innovations that elevate it above traditional analog solutions. First, the integrated digital load cell electronics employ advanced filtering and compensation algorithms that preserve measurement fidelity even under dynamic test conditions. This reduces the need for extensive external signal conditioning and simplifies system architecture. Second, the modular design philosophy enables rapid swapping and reconfiguration of compression load cells across test platforms, reducing downtime and calibration overhead. Third, PST emphasizes traceable calibration and software support, offering digital calibration profiles and firmware updates to maintain optimal sensor performance over the lifecycle of the product.

Integration and system compatibility

The digital load cell is designed for straightforward integration into modern test and measurement ecosystems. Standard digital interfaces and configurable output formats allow direct connectivity to PLCs, data acquisition systems, and dedicated force measurement controllers. PST provides software tools and APIs for data acquisition, real-time monitoring, and calibration management. The compression load cell can be paired with the company’s digital indicators, wireless telemetry modules, or networked data loggers to create comprehensive force measurement systems tailored to medical testing laboratories and production lines.

Why choose PST compression load cell for medical testing

Selecting PST’s digital load cell as a weight sensor and force sensor for medical testing delivers several compelling benefits:

- Proven precision: The compression load cell provides consistent, verifiable measurements critical to medical device validation and compliance.

- Reduced system complexity: As a digital load cell, it minimizes the need for external conditioning and simplifies cabling and integration.

- Durability and safety: Engineered materials and protective features ensure long-term reliability in demanding environments.

- Customizable solutions: PST supports tailored mechanical interfaces, calibration certificates, and software integrations to meet specific testing protocols.

PST’s compression load cell family spans capacities up to 1000T with configurable options for material, mounting, output format, and environmental sealing. Accuracy classes and resolution options are available to match the precision requirements of specific medical testing protocols. Calibration certificates, optional on-site calibration, and compliance documentation are provided to support regulatory and quality assurance needs.
